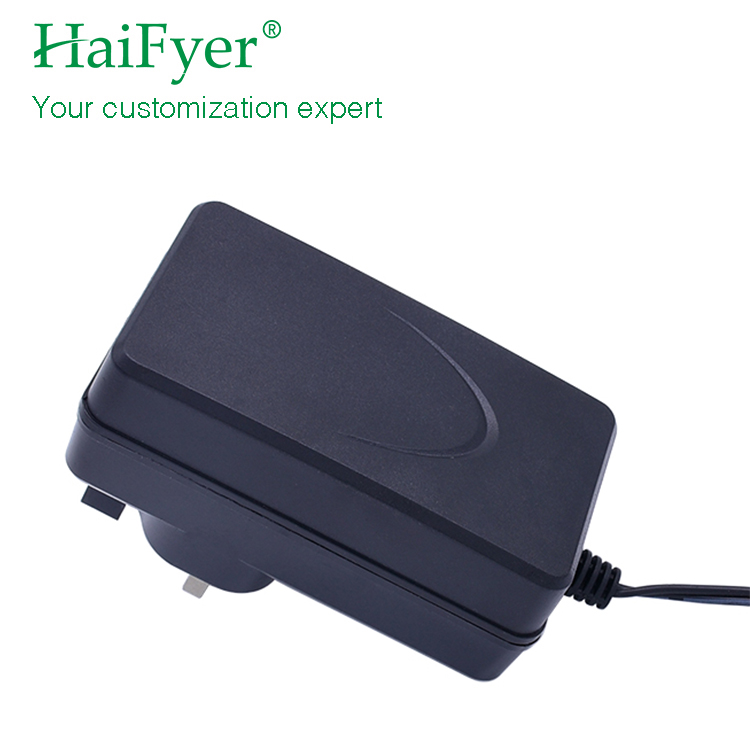

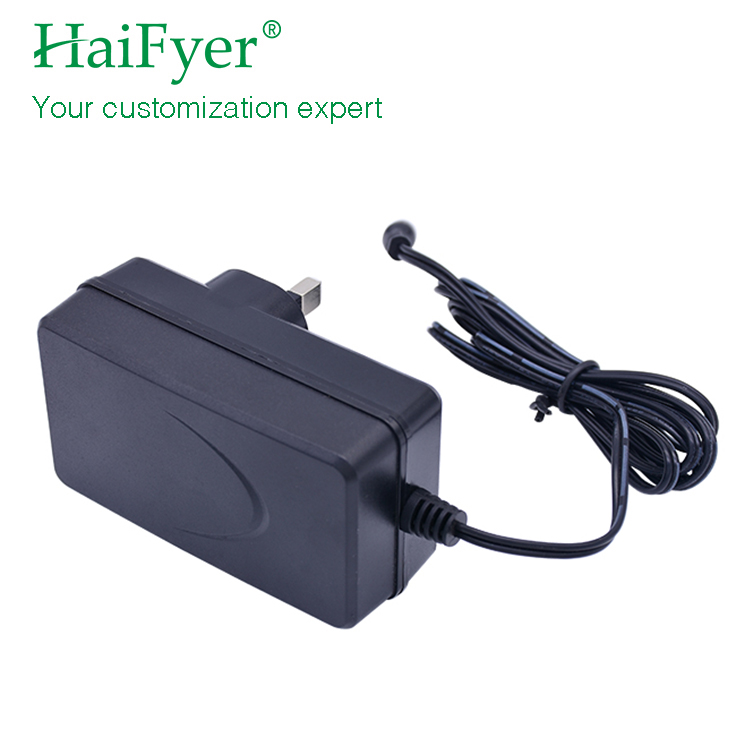

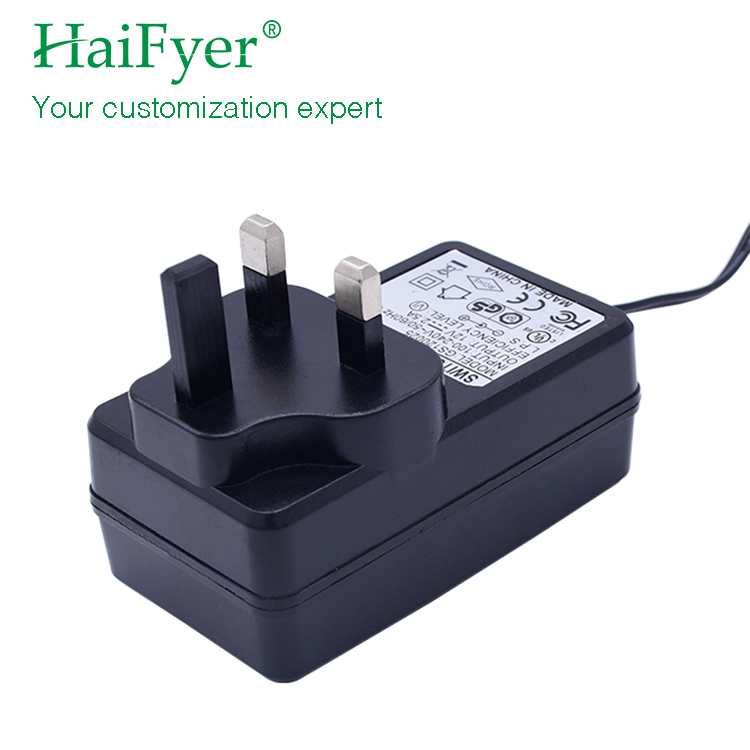

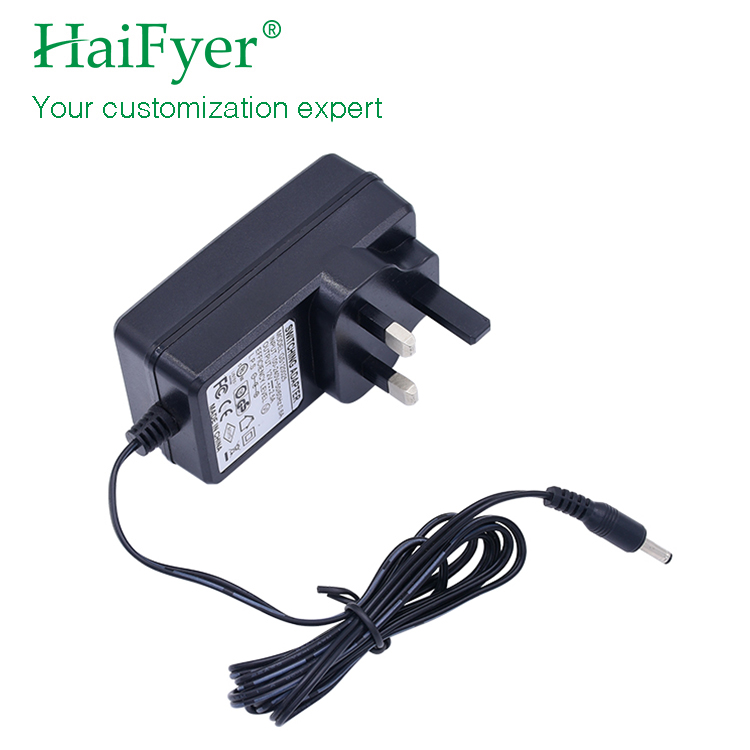

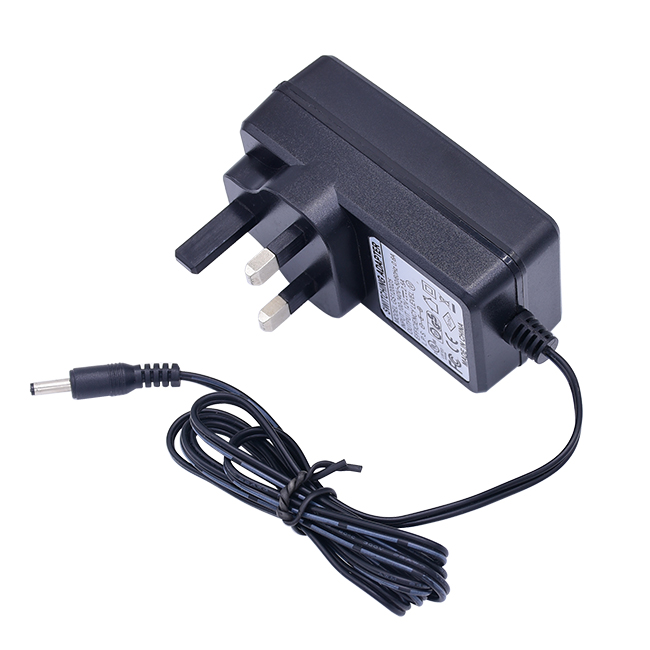

3V-36V 1A-6A Customized 36W UK Main Power Supply Adapter
Specifications:
Input Voltage Rang | 100-240V AC |
Input Voltage Frequency | 50/60Hz |
Output Voltage | 3-24VDC |
Output Current | 0.5-6A |
Output Power (optional) | 36W Max |
Certificates | UL/CUL/CE/CB/KC/PSE/GS/TUV/CCC/BIS/SAA... |
AC Plug (optional) | US/UK/EU/KR/JP/AU... |
DC connector (optional) | 5.5x2.1/5.5x2.5/3.5x1.35(mm)/type C |
DC wire long (optional) | 1.2m/1.5m / 1.8m |
Output ripple and noise | 100mv ripple at full road with 20MHz bandwidth |
Output voltage Adjustable rate | ±5% |
No-load Power Consumption | <0.15W |
Energy Efficiency Standard | Level VI |
Transistor connecting method | Single-ended type |
Turn On Delay Time | <3S (AC:110V and full load) |
Haifyer spends more than 20 years to do only one thing，making reliable power supply
With a 3-year warranty and protection against over voltage, over current, and short circuit, this adapter ensures reliable performance and longevity

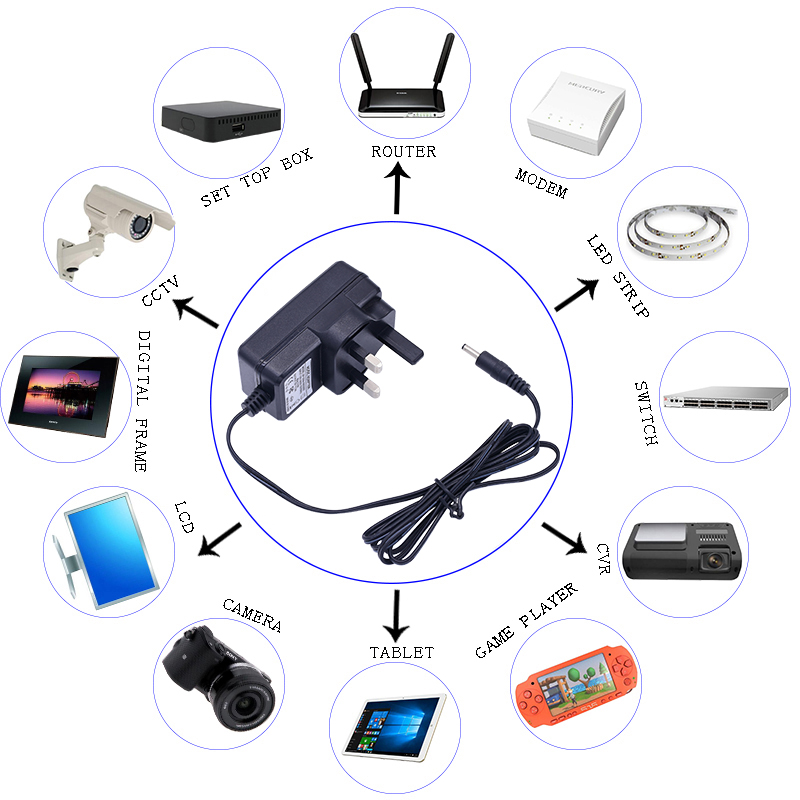

The adapter can be widely used for CCTV,Router, CRV,LCD,LED,Set top box,Modem,Digital frame,Switch,Punch Machine,Speaker,Mini Fan,POS Machine,Lamps...

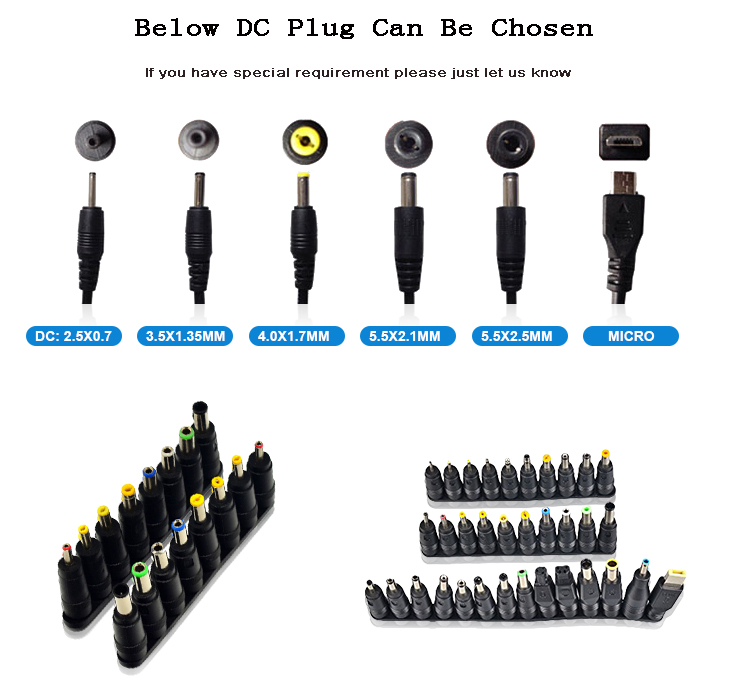

The dc connector can be 5.5*2.1,5.5*2.5,3.5*1.35,4.0*1.7,2.5*0.7 barrel type dc jack, type c, alligator clips or others that you need

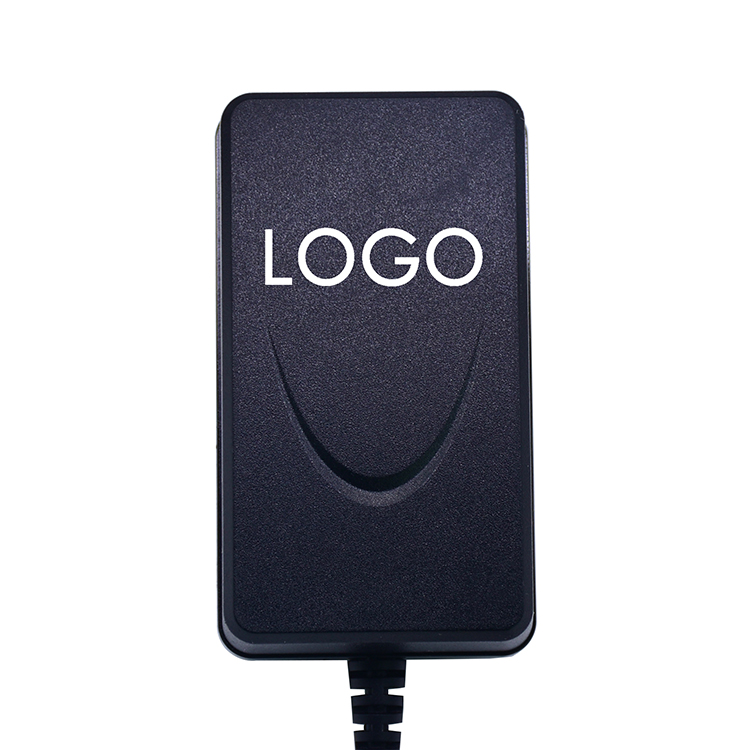

You can put your LOGO on the back side of the power adapter
Safety Certifications
Our product holds multiple safety certifications, including UL,CE, PSE, KC, RCM, SAA, UKCA, and RoHS, ensuring compliance with international safety standards.
